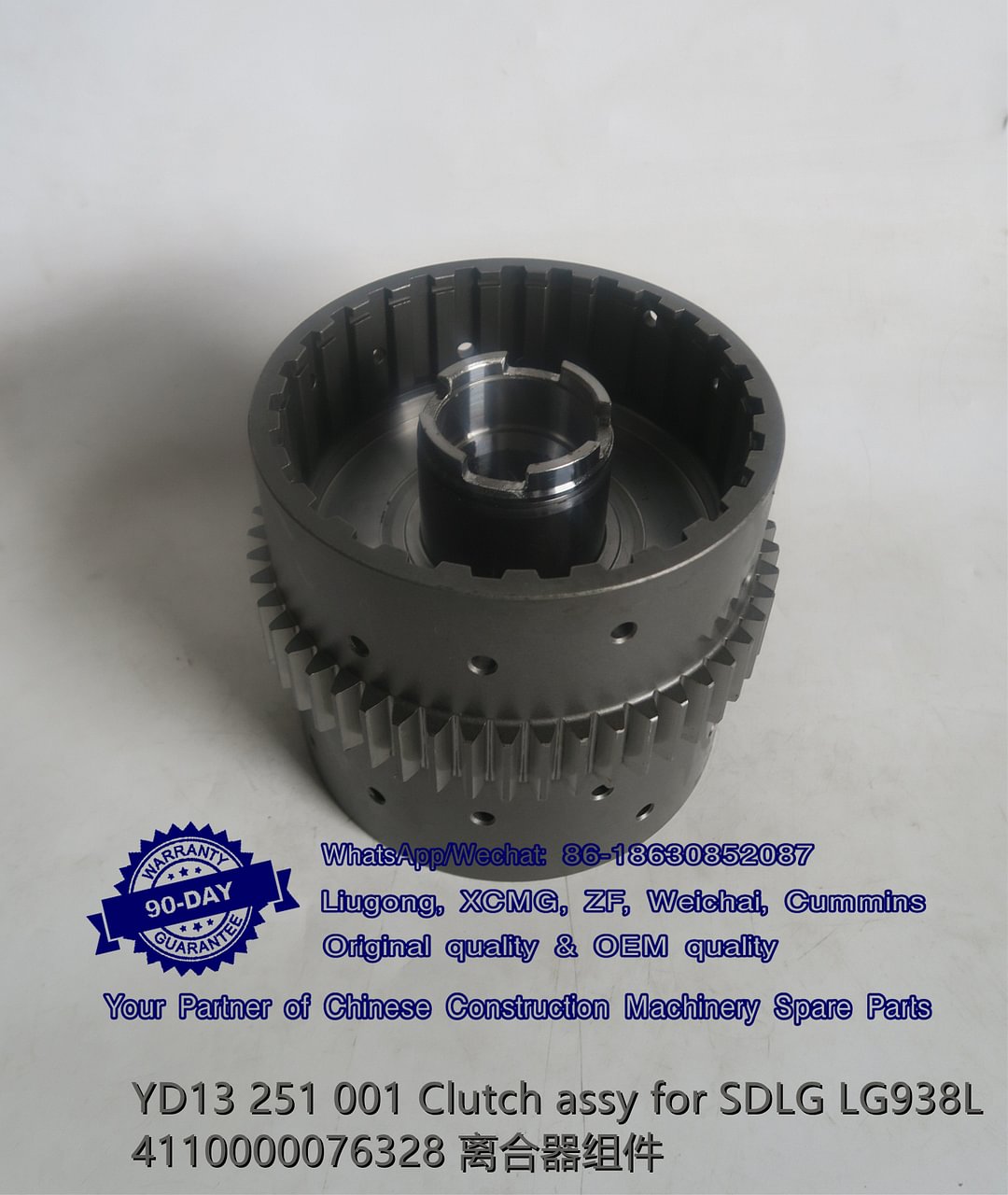

YD13 251 001 Clutch assy, Clutch housing  for SDLG LG938L 4110000076328, 4110000076329
1 / 1
2% OFF

YD13 251 001 Clutch assy, Clutch housing for SDLG LG938L 4110000076328, 4110000076329

YD13 251 001 Clutch assy, Clutch housing for SDLG LG938L 4110000076328

$139.80 $142.00
0 sold
Qty

YD13 251 001 Clutch assy, Clutch housing for SDLG LG938L 4110000076328, 4110000076329

Part Name: Clutch assy, Clutch housing
Part Number: YD13 251 001, YD13251001, HC 4644 353 055, 4644353055, 4644.353.055
Application Model and OE Number:

YD13 Transmission assy
SDLG Wheel loader LG938L 4110000076328, 4110000076329
XCMG Wheel loader ZL30BR, LW300KV, XCMG Motor grader GR135

Shipping Weight: 6.300 kg
Condition: New
Country/Region of Manufacture: China
Number of Pieces: 1
Type: Transmission parts, Clutch assembly
Warranty: 3 Month
Fast Shipping: will be shipped out in 1-3 days by DHL/FEDEX/UPS/TNT and arrive in 6-8 working days

Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts,Whatsapp 86-18630852087

Related parts:


YD13 151 离合器部件明细表Parts List of Clutch KV+K1

012 YD13 351 008 轴 Axle (151) 1
040 0634 313 536 H O型圈 O-ring 49×3 1
050 0734 401 106 搭扣密封环 Sealing ring 3
060 GB/T898-1988 螺柱 Stud M8×18 3
070 GB/T6170-2000 螺母 Nut M8 3
080 0769 120 468 调整垫片 Regulating shim 1
100 YD13 351 006 齿轮 Gear(KV/R) 1
110 0730 150 774 承磨垫 Thrust washer DUP 1
130 YD13 351 007 轴承 Bearing (WTB35×64×38) 1
140 4642 308 185 承压板 Press board 2
150 4644 353 051 活塞 Piston 1
155 4644 353 051 活塞 Piston 1
160 0750 112 141 异形密封环 Special sealing ring 2
170 4644 351 094 止动片 Limit plate 1
174 4642 308 555 止动片 Limit plate 1
200 0750 112 140 异形密封环 Special sealing ring 2
220 0732 041 183 压力弹簧 Pressured spring 2
230 4642 308 083 导向环 Guide ring 4
240 0630 531 346 H 挡圈 Retaining ring AV55 2
250 4642 308 084 导向环 Guide ring 2
260 0750 115 182 滚针轴承 Needle bearing 35×42×20 1
270 0730 513 610 弹性挡圈 Flexible retaining ring 1
280 0635 303 204 滚针轴承 Needle bearing 1
290 0730 513 611 弹性挡圈 Flexible retaining ring 1
300 0769 124 115 弹性挡圈 Flexible retaining ring 2
310 0730 150 779 承磨垫 Thrust washer DUP 1
320 YD13 351 011 K1齿轮 Gear 1
324 0630 502 037 孔用挡圈 Retaining ring for hole 2
330 0769 120 556 调整垫片 Regulating shim 1
340 0735 358 132 滚柱圈 Roller bearing 1
350 0501 308 830 挡圈 Retaining ring 2
360 0750 116 100 球轴承 Ball bearing 6009 1
390 YD13 251 001 离合器组件 Clutch assy. 1
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 13
430 4642 308 332 内摩擦片 In. frictional disc S=2.0 6
432 4642 308 330 内摩擦片 In. frictional disc S=1.5 5
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 9
450 4642 308 330 内摩擦片 In. frictional disc S=1.5 6
452 4642 308 332 内摩擦片 In. frictional disc S=2.0 1
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1

Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts,Whatsapp 86-18630852087

YD13 152 离合器部件明细Parts List of Clutch KR+K2表

012 YD13 352 009 轴 Axle (152) 1
040 GB/T1235-1976 O形圈55×3.1 1
050 0734 401 106 搭扣密封环 Sealing ring 3
060 GB/T898-1988 螺柱 Stud M8×18 3
062 厌氧胶 242 3
070 GB/T6170-2000 螺母 Nut M8 3
080 0769 120 468 调整垫片 Regulating shim 1
100 YD13 351 006 齿轮 Gear (KV/R) Z=50 1
110 0730 150 774 承磨垫 Thrust washer DUP 1
130 YD13 351 007 轴承 Bearing WTB35×64×38 1
140 4642 308 185 承压板 Press board 2
150 4644 353 051 活塞 Piston 1
155 4644 353 051 活塞 Piston 1
160 0750 112 141 异形密封环 Special sealing ring 2
170 4644 351 094 止动片 Limit plate 1
174 4642 308 555 止动片 Limit plate 1
200 0750 112 140 异形密封环 Special sealing ring 2
220 0732 041 183 压力弹簧 Pressured spring 2
230 4642 308 083 导向环 Guide ring 4
240 0630 531 346 挡圈 Retaining ring AV55 2
250 4642 308 084 导向环 Guide ring 2
260 0750 115 182 滚针轴承 Needle bearing 35×42×20 1
270 0730 513 610 弹性挡圈 Flexible retaining ring 1
280 0635 303 204 滚针轴承 Needle retaining ring 1
290 0730 513 611 弹性挡圈 Flexible retaining ring 1
300 0769 124 115 弹性挡圈 Flexible retaining ring 2
310 0730 150 779 承磨垫 Thrust washer DUP 1
320 YD13 252 009 齿轮 Gear (K2) Z=64/23 1
360 YD13 352 015 滚柱轴承 Roller bearing 1
370 YD13 352 010 挡圈 Retaining ring 3
390 YD13 251 001 离合器组件 Clutch assy. 1
418 KR离合器 NR,30 间隙 2,2-2,4mm 1
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 13
432 4642 308 330 内摩擦片 In. frictional disc S=1,5 5
430 4642 308 332 内摩擦片 In. frictional disc S=2.0 6
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1
438 K2离合器 NR,40 间隙 2,2-2,4mm 1
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 9
450 4642 308 330 内摩擦片 In. frictional disc S=1,5 6
452 4642 308 332 内摩擦片 In. frictional disc S=2,0 1
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1

Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts,Whatsapp 86-18630852087

YD13 153 离合器部件明细表Part List of Clutch K4+K3

012 YD13 353 012 轴 Axle (153) 1
040 GB/T1235-1976 O形圈55×3.1 1
050 0734 401 106 搭扣密封环 Sealing ring 3
060 GB/T898-1988 螺柱 Stud M8×18 3
062 厌氧胶 242 3
070 GB/T6170-2000 螺母 Nut M8 3
080 0769 120 468 调整垫片 Regulating shim 1
100 YD13 353 002 齿轮 Gear (K4) Z=32 1
110 0730 150 774 承磨垫 Thrust washer DUP 1
130 YD13 351 007 轴承 Bearing WTB35×64×38 1
140 4642 308 185 承压板 Press board 2
150 4644 353 051 活塞 Piston 1
155 4644 353 051 活塞 Piston 1
160 0750 112 141 异形密封环 Sealing ring 2
170 4644 351 094 止动片 Limit plate 1
174 4642 308 555 止动片 Limit plate 1
200 0750 112 140 异形密封环 Sealing ring 2
220 0732 041 183 压力弹簧 Pressured spring 2
230 4642 308 083 导向环 Guide ring 4
240 0630 531 346 挡圈 Retaining ring AV55 2
250 4642 308 084 导向环 Guide ring 2
260 0750 115 182 滚针轴承 Needle bearing 35×42×20 1
270 0730 513 610 弹性挡圈 Flexible retaining ring 1
280 0635 303 204 滚针轴承 Needle bearing 1
290 0730 513 611 弹性挡圈 Flexible retaining ring 1
300 0769 124 115 弹性挡圈 Flexible retaining ring 2
310 0730 150 779 承磨垫 Thrust washer DUP 1
320 YD13 353 011 齿轮 Gear (K3) Z=55 1
340 0750 115 109 滚针轴承 Needle bearing 1
360 0750 119 048 滚子组 Roller set 1
390 YD13 253 001 离合器组件 Clutch assy. 1
418 K4离合器 NR,40 间隙 2,2-2,4mm 1
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 8
430 4642 308 332 内摩擦片 In. frictional disc S=2.0 3
432 4642 308 330 内摩擦片 In. frictional disc S=1.5 2
434 4642 308 331 内摩擦片 In. frictional disc S=2,5 1
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1
438 K3离合器 NR,30 间隙 2,2-2,4mm 1
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0 8
450 4642 308 332 内摩擦片 In. frictional disc S=2.0 5
454 4642 308 331 内摩擦片 In. frictional disc S=2.5 1
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5 1

Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts,Whatsapp 86-18630852087

1 4110000076360 轴 YD13 351 008(151) AXLE YD13 351 008(151) Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-RING 0634 313 536 49*3 Y 1
3 4110000076050 搭扣密封环 0734 401 106 SEALING RING 0734 401 106 Y 3
4 4012000042 螺柱GB898-M8*18-8.8 STUD GB898-M8*18-8.8 N 3
5 4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 N 3
6 4110000076270 调整垫片0769120468 REGULATING SHIM 0769 120 468 Y 1
7 4110000076287 齿轮 YD13 351 006(KV/R) Z=50 GEAR YD13 351 006(KV/R) Z=50 Y 1
8 4110000076246 承磨垫 0730 150 774 DUP THRUST WASHER 0730 150 774 DUP Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 BEARING YD13 351 007 WTB35*64*38 Y 1
10 4110000076190 承压板4642308185 PRESS BOARD 4642 308 185 Y 2
11 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
12 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
13 4110000076352 异形密封环 0750 112 141 SPECIAL SEALING RING 0750 112 141 Y 2
14 4110000076199 止动片4644351094 LIMIT PLATE 4644 351 094 Y 1
15 4110000076191 止动片4642308555 LIMIT PLATE 4642 308 555 Y 1
16 4110000076353 异形密封环 0750 112 140 SPECIAL SEALING RING 0750 112 140 Y 2
17 4110000076251 压力弹簧0732041183 PRESSURED SPRING 0732 041 183 Y 2
18 4110000076189 导向环4642308083 GUIDE RING 4642 308 083 Y 4
19 4110000076298 挡圈 0630 531 346 AV55 RETAINING RING 0630 531 346 AV55 Y 2
20 4110000076302 导向环 4642 308 084 GUIDE RING 4642 308 084 N 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 NEEDLE BEARING 0750 115 182 35*42*20 Y 1
22 4110000076294 弹性挡圈 0730 513 610 FLEXIBLE RETAINING RING 0730 513 610 Y 1
23 4110000076062 滚针轴承O635303204 NEEDLE BEARING 0635 303 204 Y 1
24 4110000076295 弹性挡圈 0730 513 611 FLEXIBLE RETAINING RING 0730 513 611 Y 1
25 4110000076296 弹性挡圈0769 124 115 FLEXIBLE RETAINING RING 0769 124 115 Y 2
26 4110000076247 承磨垫 0730 150 779 DUP THRUST WASHER 0730 150 779 DUP Y 1
27 4110000076288 齿轮 YD13 351 011 (K1) Z=25 GEAR YD13 351 011 (K1) Z=25 Y 1
28 4110000076212 孔用挡圈 0630 502 037 75*2,5 RETAINING RING FOR HOLE 0630 502 037 75*2,5 Y 1
29 4110000076271 调整垫片0769120556 REGULATING SHIM 0769 120 556 Y 1
30 4110000076104 滚针组O750115109 NEEDLE SET 0750 115 109 Y 1
31 4110000076198 挡圈4644351029 RETAINING RING 4644 351 029 Y 1
32 4090000128 钢球GB308-7-GCr15 STEEL BALL GB308-7-GCR15 Y 2
33 4110000076192 圆柱销4642351015 STRAIGHT PIN 4642 351 015 Y 2
34 4014000192 螺钉GB79-M12×20-45H SCREW GB79-M12*20-45H N 2
35 4021000010 滚动轴承GB276-6009 BEARING GB276-6009 Y 1
36 4110000076328 离合器组件 YD13 251 001 CLUTCH ASSY. YD13 251 001 Y 1
37 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 13
38 4110000076068 内摩擦片 4642 308 330 S=1.5 IN. FRICTIONAL DISC 4642 308 330 S=1,5 Y 5
39 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 6
40 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1
41 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 9
42 4110000076068 内摩擦片 4642 308 330 S=1.5 IN. FRICTIONAL DISC 4642 308 330 S=1,5 Y 6
43 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 1
44 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1

1 4110000076361 轴 YD13 352 009 (152) AXLE YD13 352 009 (152) Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-RING 0634 313 536 49*3 Y 1
3 4110000076258 搭扣密封环0734401106 SEALING RING 0734 401 106 Y 3
4 4012000042 螺柱GB898-M8*18-8.8 STUD GB898-M8*18-8.8 N 3
5 4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 N 3
6 4110000076270 调整垫片0769120468 REGULATING SHIM 0769 120 468 Y 1
7 4110000076287 齿轮 YD13 351 006(KV/R) Z=50 GEAR YD13 351 006(KV/R) Z=50 Y 1
8 4110000076246 承磨垫 0730 150 774 DUP THRUST WASHER 0730 150 774 DUP Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 BEARING YD13 351 007 WTB35*64*38 Y 1
10 4110000076190 承压板4642308185 PRESS BOARD 4642 308 185 Y 2
11 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
12 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
13 4110000076352 异形密封环 0750 112 141 SPECIAL SEALING RING 0750 112 141 Y 2
14 4110000076199 止动片4644351094 LIMIT PLATE 4644 351 094 Y 1
15 4110000076191 止动片4642308555 LIMIT PLATE 4642 308 555 Y 1
16 4110000076353 异形密封环 0750 112 140 SPECIAL SEALING RING 0750 112 140 Y 2
17 4110000076251 压力弹簧0732041183 PRESSURED SPRING 0732 041 183 Y 2
18 4110000076189 导向环4642308083 GUIDE RING 4642 308 083 Y 4
19 4110000076298 挡圈 0630 531 346 AV55 RETAINING RING 0630 531 346 AV55 Y 2
20 4110000076302 导向环 4642 308 084 GUIDE RING 4642 308 084 N 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 NEEDLE BEARING 0750 115 182 35*42*20 Y 1
22 4110000076294 弹性挡圈 0730 513 610 FLEXIBLE RETAINING RING 0730 513 610 Y 1
23 4110000076062 滚针轴承O635303204 NEEDLE BEARING 0635 303 204 Y 1
24 4110000076295 弹性挡圈 0730 513 611 FLEXIBLE RETAINING RING 0730 513 611 Y 1
25 4110000076296 弹性挡圈0769 124 115 FLEXIBLE RETAINING RING 0769 124 115 Y 2
26 4110000076247 承磨垫 0730 150 779 DUP THRUST WASHER 0730 150 779 DUP Y 1
27 4110000076286 齿轮 YD13 252 009 (K2) Z=64/23 GEAR YD13 252 009 (K2) Z=64/23 Y 1
28 4110000076321 滚柱轴承 YD13 352 015 ROLLER BEARING YD13 352 015 Y 1
29 4110000076280 挡圈YD13352010 RETAINING RING YD13 352 010 Y 3
30 4110000076328 离合器组件 YD13 251 001 CLUTCH ASSY. YD13 251 001 Y 1
31 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 13
32 4110000076068 内摩擦片 4642 308 330 S=1.5 IN. FRICTIONAL DISC 4642 308 330 S=1,5 Y 5
33 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 6
34 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1
35 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 9
36 4110000076068 内摩擦片 4642 308 330 S=1.5 IN. FRICTIONAL DISC 4642 308 330 S=1,5 Y 6
37 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 1
38 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1

1 4110000076362 轴 YD13 353 012 (153) AXLE YD13 353 012 (153) Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-RING 0634 313 536 49*3 Y 1
3 4110000076258 搭扣密封环0734401106 SEALING RING 0734 401 106 Y 3
4 4012000042 螺柱GB898-M8*18-8.8 STUD GB898-M8*18-8.8 N 3
5 4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 N 3
6 4110000076270 调整垫片0769120468 REGULATING SHIM 0769 120 468 Y 1
7 4110000076289 齿轮 YD13 353 002 (K4) Z=32 GEAR YD13 353 002 (K4) Z=32 Y 1
8 4110000076246 承磨垫 0730 150 774 DUP THRUST WASHER 0730 150 774 DUP Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 BEARING YD13 351 007 WTB35*64*38 Y 1
10 4110000076190 承压板4642308185 PRESS BOARD 4642 308 185 Y 2
11 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
12 4110000076324 活塞 4644 353 051 PISTON 4644 353 051 Y 1
13 4110000076352 异形密封环 0750 112 141 SPECIAL SEALING RING 0750 112 141 Y 2
14 4110000076199 止动片4644351094 LIMIT PLATE 4644 351 094 Y 1
15 4110000076191 止动片4642308555 LIMIT PLATE 4642 308 555 Y 1
16 4110000076353 异形密封环 0750 112 140 SPECIAL SEALING RING 0750 112 140 Y 2
17 4110000076251 压力弹簧0732041183 PRESSURED SPRING 0732 041 183 Y 2
18 4110000076189 导向环4642308083 GUIDE RING 4642 308 083 Y 4
19 4110000076298 挡圈 0630 531 346 AV55 RETAINING RING 0630 531 346 AV55 Y 2
20 4110000076302 导向环 4642 308 084 GUIDE RING 4642 308 084 N 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 NEEDLE BEARING 0750 115 182 35*42*20 Y 1
22 4110000076294 弹性挡圈 0730 513 610 FLEXIBLE RETAINING RING 0730 513 610 Y 1
23 4110000076062 滚针轴承O635303204 NEEDLE BEARING 0635 303 204 Y 1
24 4110000076295 弹性挡圈 0730 513 611 FLEXIBLE RETAINING RING 0730 513 611 Y 1
25 4110000076296 弹性挡圈0769 124 115 FLEXIBLE RETAINING RING 0769 124 115 Y 2
26 4110000076247 承磨垫 0730 150 779 DUP THRUST WASHER 0730 150 779 DUP Y 1
27 4110000076290 齿轮 YD13 353 011 (K3) Z=55 GEAR YD13 353 011 (K3) Z=55 Y 1
28 4110000076322 滚子组 0750 119 048 ROLLER SET 0750 119 048 Y 1
29 4110000076329 离合器组件 YD13 253 001 CLUTCH ASSY.YD13 253 001 Y 1
30 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 8
31 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 3
32 4110000076068 内摩擦片 4642 308 330 S=1.5 IN. FRICTIONAL DISC 4642 308 330 S=1,5 Y 2
33 4110000076107 内摩擦片 4642 308 331 S=2.5 IN. FRICTIONAL DISC 4642 308 331 S=2,5 Y 1
34 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1
35 4110000076067 外摩擦片 0501 309 329 S=2,0 EX. FRICTIONAL DISC 0501 309 329 D=137,5 S=2,0 Y 8
36 4110000076069 内摩擦片 4642 308 332 S=2.0 IN. FRICTIONAL DISC 4642 308 332 S=2,0 Y 5
37 4110000076107 内摩擦片 4642 308 331 S=2.5 IN. FRICTIONAL DISC 4642 308 331 S=2,5 Y 1
38 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5 Y 1

http://www.votai.net/stock.aspx?category=148&id=7602

https://www.pinterest.com.au/pin/103442122683469380

BRAND LIST
