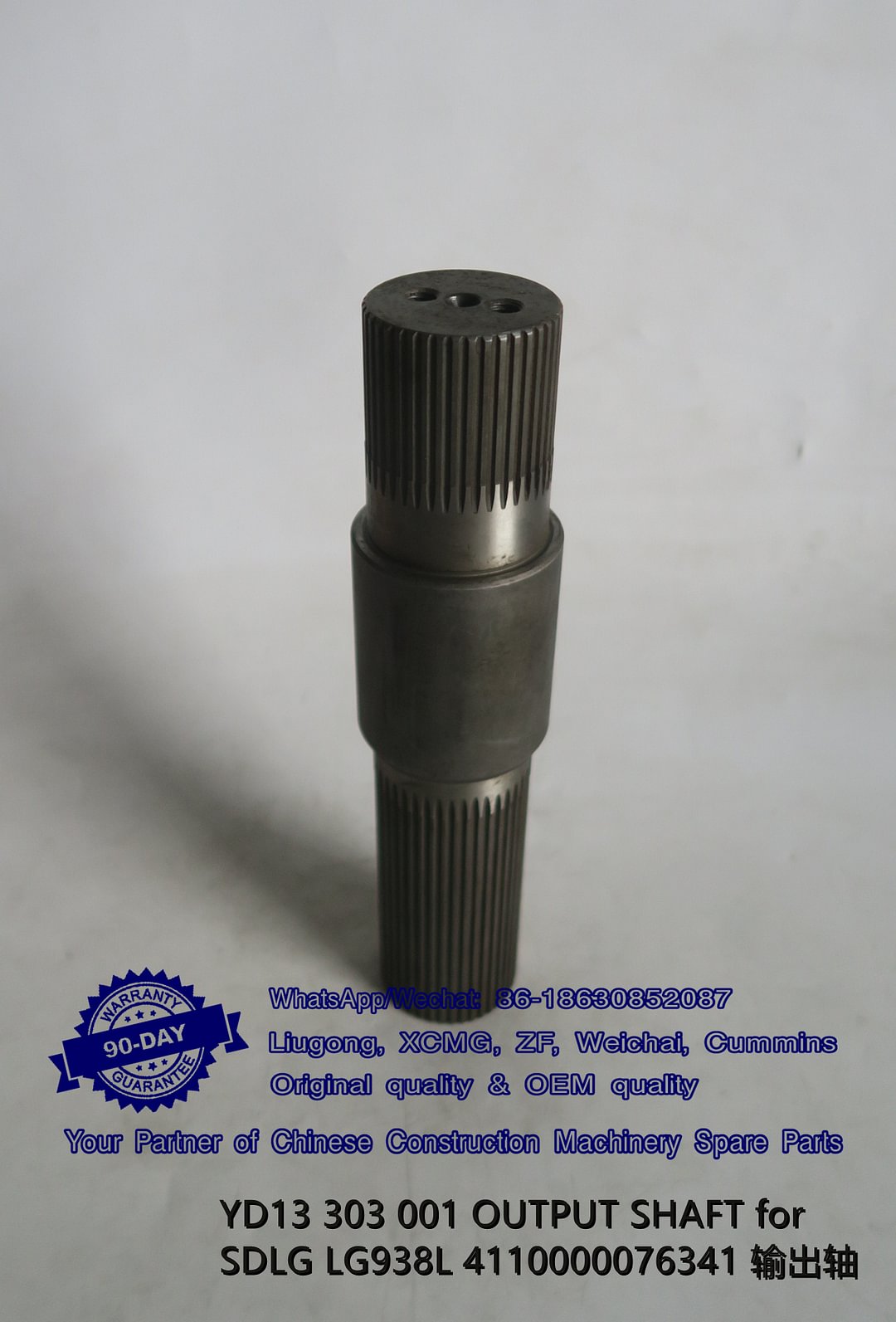

YD13 303 001 OUTPUT SHAFT for SDLG LG938L 4110000076341
1 / 1
1% OFF

YD13 303 001 OUTPUT SHAFT for SDLG LG938L 4110000076341

YD13 303 001 OUTPUT SHAFT for SDLG LG938L 4110000076341

$71.80 $72.50
0 sold
Qty

YD13 303 001 OUTPUT SHAFT for SDLG LG938L 4110000076341

Part Name: OUTPUT SHAFT
Part Number: YD13 303 001, YD13303001
Application Model and OE Number: YD13 Transmission assy
SDLG Wheel loader LG938L 4110000076341
XCMG Wheel loader LW300KV 800107182, XCMG Motor grader GR135

Shipping Weight: 5.50 kg
Condition: New
Country/Region of Manufacture: China
Number of Pieces: 1
Type: Transmission parts, Clutch assembly
Warranty: 3 Month
Fast Shipping: will be shipped out in 1-3 days by DHL/FEDEX/UPS/TNT and arrive in 6-8 working days

Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts, Whatsapp 86-18630852087

Related parts:


YD13 103 输出部件明细表Parts List of Output Assembly

010 YD13 303 001 输出轴 Output shaft 1
020 YD13 303 003 输出齿轮 Output gear Z=53 1
030 GB/T283-2007 滚子轴承NJ213E/C3/J 1
034 1204 308 062 调整垫片 Regulating shim 1
040 4620 303 247 压板 Press plate 2
044 厌氧胶 515 2
050 GB/T5783-2000 螺栓 Bolt M10×30 4
060 1269 302 164 螺栓锁片 Bolt retainer 2
070 0750 111 116 轴用密封圈 Sealing ring for shaft WTB,90×120×13 2
080 GB/T276-1994 球轴承 Ball bearing 6311 55×120×29 1
090 0630 502 048 孔用挡圈 Retaining ring for hole 120×4 3
100 0769 120 338 调整垫片 Regulating shim 1
110 0730 062 296 轴套 Sleeve L=20 1
140 YD13 303 012 输出法兰(ZL40/50) 1
Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts, Whatsapp 86-18630852087

SDLG LG938L Transmission system OUTPUT PARTS:

1 4110000076341 输出轴 YD13 303 001 OUTPUT SHAFT YD13 303 001 Y 1
2 4110000076338 输出齿轮 YD13 303 003 Z=53 OUTPUT GEAR YD13 303 003 Z=53 Y 1
3 4021000164 P轴承GB283-NJ213E BEARING GB283-NJ213E Y 1
4 4110000076309 调整垫片 1204 308 062 REGULATING SHIM 1204 308 062 Y 1
5 4110000076170 压板4620303247 PRESS PLATE 4620 303 247 Y 2
6 4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8 N 4
7 4110000076369 螺栓锁片 1269 302 164 BOLT RETAINER 1269 302 164 Y 2
8 4110000076366 轴用密封圈0750 111 116 WTB,90*120*13 STAND-BY DRIVE SHAFT 0750 111 116 WTB,90*120*13 Y 2
9 4021000023 滚动轴承GB276-6311 BEARING GB276-6311 Y 1
10 4110000076213 孔用挡圈0630 502 048 120*4 RETAINING RING FOR HOLE 0630 502 048 120*4 Y 3
11 4110000076268 调整垫片0769120338 REGULATING SHIM 0769 120 338 Y 1
12 4110000076245 轴套 0730 062 296 L=20 SLEEVE 0730 062 296 L=20 Y 1
13 4110000076339 输出法兰YD13 303 012 (SAE 7C) OUTPUT FLANGE YD13 303 012 (SAE 7C)  1
Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts, Whatsapp 86-18630852087

For XCMG Wheel loader LW300KV Transmission assembly:

变速箱输出部分 CONJUNTO DE SAÍDA
部件号 PART NO. 800357721

1 800106769 压板 CHAPA 2 4620 303 247
2 805048006 螺栓 M10×30 PARAFUSO M10×30 4 GB/T16674.1
3 800308375 螺栓锁片 ARRUELA 2 1269 302 164
4 800107188 输出法兰(ZL40/50) FLANGE (ZL40/50) 1 YD13 303 012
5 860110702 轴用密封圈 WTB,90×120×13 ANEL WTB,90×120×13 2 0750 111 116
6 860142831 孔用挡圈 120×4 ANEL 120×4 3 0630 502 048
7 800106693 调整垫片 ARRUELA 1 1204 308 062
8 860124366 滚子轴承 NJ213E/C3/J ROLAMENTO NJ213E/C3/J 1 GB/T283-2007
9 800107183 输出齿轮 Z=53 ENGRENAGEM DE SAÍDA Z=53 1 YD13 303 003
10 800106682 轴套 L=20 LUVA L=20 1 0730 062 296
11 800107182 输出轴 EIXO DE SAÍDA 1 YD13 303 001
12 800511252 球轴承 6311 55×120×29 ROLAMENTO 6311 55×120×29 1 GB/T276-1994
13 860124370 调整垫片 ARRUELA 1 0769 120 338
Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts, Whatsapp 86-18630852087

For XCMG Motor grader GR135 YD13 103 Conjunto de Saída

Item Código Descrição Qtde. Observação
1 1269 302 164 Trava do parafuso 2
2 GB/T5783-2000 Parafuso M10 x 30 4
3 4620 303 247 Placa de pressão 2
4 YD13 303 006 Flange de saída (SAE 7C) 1
5 0750 111 116 Anel vedador do eixo WTB 90 x 120 x 13 2
6 0630 502 048 Anel trava 120 x 4 3
7 1204 308 062 Calço de ajuste 1
8 GB/T283-1994 Rolamento de roletes NJ213E 65 x 120 x 23 1
9 YD13 303 003 Engrenagem de saída Z=53 1
10 0730 062 296 Engrenagem do velocímetro L = 20 1
11 YD13 303 001 Eixo de saída 1
12 GB/T276-1994 Rolamento de esferas 6311 55 x 120 x 29 1
13 0769 120 338 Calço de ajuste 1
Full range of spare parts for YD13 Transmission parts, SDLG LG938L Parts, Whatsapp 86-18630852087

YD13 Transmission assy Spare parts
SDLG Wheel loader LG938L Spare parts
XCMG Wheel loader LW300KV Spare parts, XCMG Motor grader GR135 Spare parts
