YD13 Transmission assy spare parts, YD13 Gear 4110000076290, YD13 353 011, YD13353011

YD13 Gear 4110000076290, YD13 353 011, YD13353011

$78.50 $80.50
0 sold
Qty

YD13 Transmission assy spare parts, YD13 Gear 4110000076290, YD13 353 011, YD13353011

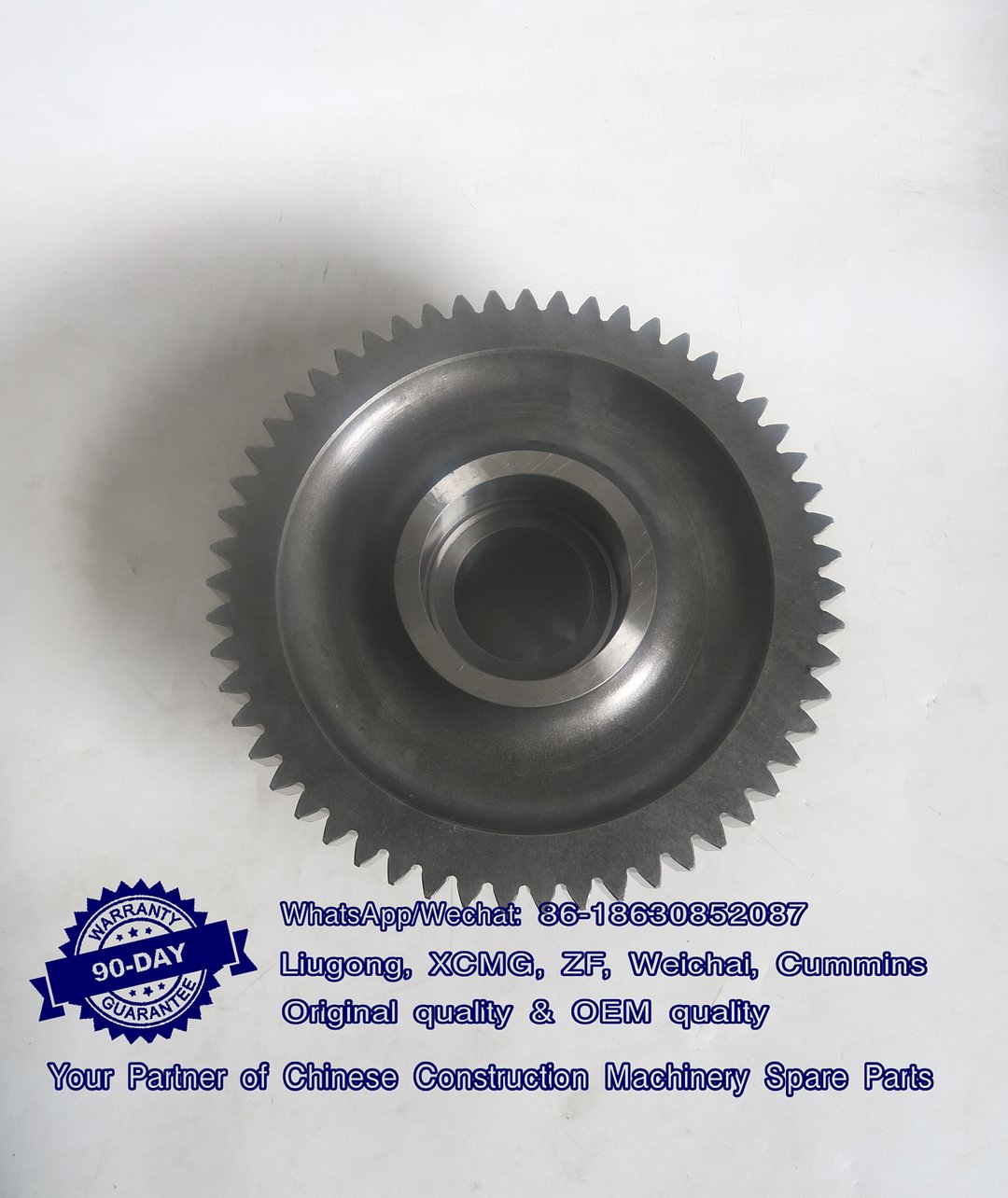

Description: Gear (K3)

Part number: 4110000076290, YD13 353 011, YD13353011

Unit weight: 7.50 kgs

Application: YD13 Gearbox assembly

Related parts:

DRIVE SHAFT 传动轴 4110000076317, YD13 302 003, YD13302003
TURBO SHAFT 涡轮轴 4110000076347, YD13 302 002, YD13302002
INPUT SHAFT 输入轴 4644 302 188 , 4644302188 , 4644.302.188
SHAFT 轴 4110000076361, YD13 352 009 , YD13352009
SHAFT 轴 4110000076362, YD13 353 012 (153), YD13353012
SHAFT 轴 4110000076360, YD13 351 008 (151), YD13351008
GEAR 齿轮Z=25 4110000076288, YD13 351 011 (K1) Z=25, YD13351011
GEAR 齿轮(KV/R) Z=50 4110000076287, YD13 351 006 (KV/R) Z=50, YD13351006
GEAR 齿轮Z=64/23 4110000076286, YD13 252 009 (K2) Z=64/23, YD13252009
GEAR 齿轮Z=55 4110000076290, YD13 353 011 (K3) Z=55, YD13353011
CLUTCH ASSY 离合器组件 4110000076328, YD13 251 001, YD13251001
CLUTCH ASSY 离合器组件 4110000076329, YD13 253 001, YD13253001

YD13 Transmission assembly spare parts catalog

012 YD13 351 008 轴 Axle (151)
040 0634 313 536 H O型圈 O-ring 49×3
050 0734 401 106 搭扣密封环 Sealing ring
060 GB/T898-1988 螺柱 Stud M8×18
070 GB/T6170-2000 螺母 Nut M8
080 0769 120 468 调整垫片 Regulating shim
100 YD13 351 006 齿轮 Gear(KV/R)
110 0730 150 774 承磨垫 Thrust washer DUP
130 YD13 351 007 轴承 Bearing (WTB35×64×38)
140 4642 308 185 承压板 Press board
150 4644 353 051 活塞 Piston
155 4644 353 051 活塞 Piston
160 0750 112 141 异形密封环 Special sealing ring
170 4644 351 094 止动片 Limit plate
174 4642 308 555 止动片 Limit plate
200 0750 112 140 异形密封环 Special sealing ring
220 0732 041 183 压力弹簧 Pressured spring
230 4642 308 083 导向环 Guide ring
240 0630 531 346 H 挡圈 Retaining ring AV55
250 4642 308 084 导向环 Guide ring
260 0750 115 182 滚针轴承 Needle bearing 35×42×20
270 0730 513 610 弹性挡圈 Flexible retaining ring
280 0635 303 204 滚针轴承 Needle bearing
290 0730 513 611 弹性挡圈 Flexible retaining ring
300 0769 124 115 弹性挡圈 Flexible retaining ring
310 0730 150 779 承磨垫 Thrust washer DUP
320 YD13 351 011 K1齿轮 Gear
324 0630 502 037 孔用挡圈 Retaining ring for hole
330 0769 120 556 调整垫片 Regulating shim
340 0735 358 132 滚柱圈 Roller bearing
350 0501 308 830 挡圈 Retaining ring
360 0750 116 100 球轴承 Ball bearing 6009
390 YD13 251 001 离合器组件 Clutch assy.
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
430 4642 308 332 内摩擦片 In. frictional disc S=2.0
432 4642 308 330 内摩擦片 In. frictional disc S=1.5
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
450 4642 308 330 内摩擦片 In. frictional disc S=1.5
452 4642 308 332 内摩擦片 In. frictional disc S=2.0
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5


012 YD13 352 009 轴 Axle (152)
040 0634 313 536 H O型圈 O-ring 49×3
050 0734 401 106 搭扣密封环 Sealing ring
060 GB/T898-1988 螺柱 Stud M8×18
070 GB/T6170-2000 螺母 Nut M8
080 0769 120 468 调整垫片 Regulating shim
100 YD13 351 006 齿轮 Gear (KV/R)
110 0730 150 774 承磨垫 Thrust washer DUP
130 YD13 351 007 轴承 Bearing WTB35×64×38
140 4642 308 185 承压板 Press board
150 4644 353 051 活塞 Piston
155 4644 353 051 活塞 Piston
160 0750 112 141 异形密封环 Special sealing ring
170 4644 351 094 止动片 Limit plate
174 4642 308 555 止动片 Limit plate
200 0750 112 140 异形密封环 Special sealing ring
220 0732 041 183 压力弹簧 Pressured spring
230 4642 308 083 导向环 Guide ring
240 0630 531 346 H 挡圈 Retaining ring AV55
250 4642 308 084 导向环 Guide ring
260 0750 115 182 滚针轴承 Needle bearing 35×42×20
270 0730 513 610 弹性挡圈 Flexible retaining ring
280 0635 303 204 滚针轴承 Needle bearing
290 0730 513 611 弹性挡圈 Flexible retaining ring
300 0769 124 115 弹性挡圈 Flexible retaining ring
310 0730 150 779 承磨垫 Thrust washer DUP
320 YD13 252 009 齿轮 Gear (K2)
360 YD13 352 015 滚柱轴承 Roller bearing
370 YD13 352 010 挡圈 Retaining ring
390 YD13 251 001 离合器组件 Clutch assy.
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
430 4642 308 332 内摩擦片 In. frictional disc S=2,0
432 4642 308 330 内摩擦片 In. frictional disc S=1,5
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
450 4642 308 330 内摩擦片 In. frictional disc S=1,5
452 4642 308 332 内摩擦片 In. frictional disc S=2,0
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5

012 YD13 353 012 轴 Axle (153)
040 0634 313 536 H O型圈 O-ring 49×3
050 0734 401 106 搭扣密封环 Sealing ring
060 GB/T898-1988 螺柱 Stud M8×18
070 GB/T6170-2000 螺母 Nut M8
080 0769 120 468 调整垫片 Regulating shim
100 YD13 353 002 齿轮 Gear (K4)
110 0730 150 774 承磨垫 Thrust washer DUP
130 YD13 351 007 轴承 Bearing WTB35×64×38
140 4642 308 185 承压板 Press board
150 4644 353 051 活塞 Piston
155 4644 353 051 活塞 Piston
160 0750 112 141 异形密封环 Special sealing ring
170 4644 351 094 止动片 Limit plate
174 4642 308 555 止动片 Limit plate
200 0750 112 140 异形密封环 Special sealing ring
220 0732 041 183 压力弹簧 Pressured spring
230 4642 308 083 导向环 Guide ring
240 0630 531 346 H 挡圈 Retaining ring AV55
250 4642 308 084 导向环 Guide ring
260 0750 115 182 滚针轴承 Needle bearing 35×42×20
270 0730 513 610 弹性挡圈 Flexible retaining ring
280 0635 303 204 滚针轴承 Needle bearing
290 0730 513 611 弹性挡圈 Flexible retaining ring
300 0769 124 115 弹性挡圈 Flexible retaining ring
310 0730 150 779 承磨垫 Thrust washer DUP
320 YD13 353 011 齿轮 Gear (K3)
340 0750 115 109 滚针轴承 Needle bearing
360 0750 119 048 滚子组 Roller set
390 YD13 253 001 离合器组件 Clutch assy.
420 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
430 4642 308 332 内摩擦片 In. frictional disc S=2.0
432 4642 308 330 内摩擦片 In. frictional disc S=1.5
434 4642 308 331 内摩擦片 In. frictional disc S=2.5
436 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5
440 0501 309 329 外摩擦片 Ex. frictional disc S=2,0
450 4642 308 332 内摩擦片 In. frictional disc S=2.0
454 4642 308 331 内摩擦片 In. frictional disc S=2.5
456 0769 129 011 内摩擦片 In. frictional disc S=1,5/2,0/2,5

020 YD13 354 017 取力输出轴 Output shaft
060 0750 116 259 球轴承 Ball bearing 6209 N/C3
070 0630 503 011 H 轴用弹性挡圈 Retaining ring SP85
080 0630 501 033 H 轴用挡圈 Retaining ring 45×1.75
100 YD13 354 005 纸垫 Gasket
110 GB/T5783-2000 螺栓 Bolt M8×20
120 YD13 354 016 取力输出轮毂 Pump flange
130 YD13 354 002 取力齿轮 Gear
140 0630 513 068 H 轴用弹性挡圈 Retaining ring SW47
150 0635 303 104 滚针轴承 Needle bearing
160 0630 513 016 H 孔用弹性挡圈 Retaining ring SB52

010 YD13 355 019 取力输出轴 Output shaft
020 YD13 354 002 取力齿轮 Gear
040 GB/T276-1994 轴承 Bearing 6209
060 GB/T276-1994 轴承 Bearing 6209
100 YD13 355 008 泵法兰 Pump flange
110 YD13 355 004 纸垫 Gasket
120 GB/T898-1988 螺柱 Stud M8×18
122 GB/T6170-2000 螺母 Nut M8
124 GB/T96-1985 垫圈 Washer 8
140 YD13 221 006 吸油管 Hose tube M14
150 4642 211 001 油管组件 Pipeline
160 YD13 321 002 管接头 Pipe joint M14×1.5/M18×1.5
170 Q20-03A 垫圈 Washer 14

010 4642 306 152 阀体 Valve body
020 4620 306 248 锁片 Locking plate
030 0732 040 838 弹簧 Spring
040 4620 306 245 阀芯 Valve core
050 0732 040 837 弹簧 Spring
060 0730 061 778 隔套 Screw-in sleeve
070 0769 120 747 垫片 Shim
080 4620 306 247 衬套 Bushing
090 4642 306 094 阀芯 Valve core
100 0732 041 254 弹簧 Spring
110 4620 306 252 挡销 Backing pin
120 0634 303 118 O-型圈 O-ring
130 4620 306 413 阀芯 Valve core
140 0732 041 390 挡销 Backing pin
150 4620 306 414 固定板 Fixing plate
160 4644 306 549 阀芯 Valve core
170 4644 306 241 固定板 Fixing plate
180 4620 306 255 阀芯 Valve core
190 0732 041 154 弹簧 Spring
200 0732 041 254 弹簧 Spring
210 4642 306 093 阀芯 Valve core
220 4620 306 252 挡销 Backing pin
230 0634 303 118 O-型圈 O-ring
240 4642 306 049 锁片 Locking plate
250 4644 306 549 挡销 Backing pin
260 0732 041 254 弹簧 Spring
270 4642 306 095 阀芯 Valve core
280 0732 041 254 弹簧 Spring
290 4642 306 096 阀芯 Valve core
300 4620 306 252 挡销 Backing pin
310 0634 303 118 O-型圈 O-ring
320 4620 306 415 盖 Cover
330 4620 306 479 纸垫 Gasket
340 0636 015 244 六角头螺栓 Hex. bolt M5×18 DIN933 8.8
350 0501 315 338 电磁阀 Solenoid valve
360 0636 101 129 内六角头螺栓 Socket bolt M5×12 DIN912 8.8
370 0630 305 012 弹簧垫圈 Spring washer 5 DIN7980
380 4620 206 019 电缆组件 Cable set
400 0636 404 299 开槽螺钉 Slotted screw M4×12 DIN84 4.8
410 0630 302 076 鞍型弹性垫圈 Saddle flexible washer
460 4620 306 259 电磁阀罩壳 Solenoid valve housing
470 0634 303 951 O-型圈 O-ring
480 4620 306 241 弓夹 Clamp
490 0636 304 019 螺塞 Plug M10×1 DIN910
500 0634 801 152 紫铜垫圈 Copper washer A10×13.5 DIN7603

1 4110000076361 AXLE YD13 352 009 (152)
2 4110000076380 O-RING 0634 313 536 49*3
3 4110000076258 SEALING RING 0734 401 106
4 4012000042 STUD GB898-M8*18-8.8
5 4013000033 NUT GB6170-M8EpZn-8
6 4110000076270 REGULATING SHIM 0769 120 468
7 4110000076287 GEAR YD13 351 006(KV/R) Z=50
8 4110000076246 THRUST WASHER 0730 150 774 DUP
9 4110000076053 BEARING YD13 351 007 WTB35*64*38
10 4110000076190 PRESS BOARD 4642 308 185
11 4110000076324 PISTON 4644 353 051
12 4110000076324 PISTON 4644 353 051
13 4110000076352 SPECIAL SEALING RING 0750 112 141
14 4110000076199 LIMIT PLATE 4644 351 094
15 4110000076191 LIMIT PLATE 4642 308 555
16 4110000076353 SEALING RING 0750 112 140
17 4110000076251 PRESSURED SPRING 0732 041 183
18 4110000076189 GUIDE RING 4642 308 083
19 4110000076298 RETAINING RING 0630 531 346 AV55
20 4110000076302 GUIDE RING 4642 308 084
21 4110000076060 NEEDLE BEARING 0750 115 182 35*42*20
22 4110000076294 FLEXIBLE RETAINING RING 0730 513 610
23 4110000076062 NEEDLE BEARING 0635 303 204
24 4110000076295 FLEXIBLE RETAINING RING 0730 513 611
25 4110000076296 FLEXIBLE RETAINING RING 0769 124 115
26 4110000076247 THRUST WASHER 0730 150 779 DUP
27 4110000076286 GEAR YD13 252 009 (K2) Z=64/23
28 4110000076321 ROLLER BEARING YD13 352 015
29 4110000076280 RETAINING RING YD13 352 010
30 4110000076328 CLUTCH ASSY. YD13 251 001
31 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
32 4110000076068 IN. FRICTIONAL DISC 4642 308 330 S=1,5
33 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
34 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5
35 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
36 4110000076068 IN. FRICTIONAL DISC 4642 308 330 S=1,5
37 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
38 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5
1 4110000076360 AXLE YD13 351 008(151)
2 4110000076380 O-RING 0634 313 536 49*3
3 4110000076050 SEALING RING 0734 401 106
4 4012000042 STUD GB898-M8*18-8.8
5 4013000033 NUT GB6170-M8EpZn-8
6 4110000076270 REGULATING SHIM 0769 120 468
7 4110000076287 GEAR YD13 351 006(KV/R) Z=50
8 4110000076246 THRUST WASHER 0730 150 774 DUP
9 4110000076053 BEARING YD13 351 007 WTB35*64*38
10 4110000076190 PRESS BOARD 4642 308 185
11 4110000076324 PISTON 4644 353 051
12 4110000076324 PISTON 4644 353 051
13 4110000076352 SPECIAL SEALING RING 0750 112 141
14 4110000076199 LIMIT PLATE 4644 351 094
15 4110000076191 LIMIT PLATE 4642 308 555
16 4110000076353 SEALING RING 0750 112 140
17 4110000076251 PRESSURED SPRING 0732 041 183
18 4110000076189 GUIDE RING 4642 308 083
19 4110000076298 RETAINING RING 0630 531 346 AV55
20 4110000076302 GUIDE RING 4642 308 084
21 4110000076060 NEEDLE BEARING 0750 115 182 35*42*20
22 4110000076294 FLEXIBLE RETAINING RING 0730 513 610
23 4110000076062 NEEDLE BEARING 0635 303 204
24 4110000076295 FLEXIBLE RETAINING RING 0730 513 611
25 4110000076296 FLEXIBLE RETAINING RING 0769 124 115
26 4110000076247 THRUST WASHER 0730 150 779 DUP
27 4110000076288 GEAR YD13 351 011 (K1) Z=25
28 4110000076212 RETAINING RING FOR HOLE 0630 502 037 75*2,5
29 4110000076271 REGULATING SHIM 0769 120 556
30 4110000076104 NEEDLE SET 0750 115 109
31 4110000076198 RETAINING RING 4644 351 029
32 4090000128 STEEL BALL GB308-7-GCR15
33 4110000076192 STRAIGHT PIN 4642 351 015
34 4014000192 SCREW GB79-M12*20-45H
35 4021000010 BEARING GB276-6009
36 4110000076328 CLUTCH ASSY. YD13 251 001
37 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
38 4110000076068 IN. FRICTIONAL DISC 4642 308 330 S=1,5
39 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
40 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5
41 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
42 4110000076068 IN. FRICTIONAL DISC 4642 308 330 S=1,5
43 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
44 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5
1 4110000076362 AXLE YD13 353 012 (153)
2 4110000076380 O-RING 0634 313 536 49*3
3 4110000076258 SEALING RING 0734 401 106
4 4012000042 STUD GB898-M8*18-8.8
5 4013000033 NUT GB6170-M8EpZn-8
6 4110000076270 REGULATING SHIM 0769 120 468
7 4110000076289 GEAR YD13 353 002 (K4) Z=32
8 4110000076246 THRUST WASHER 0730 150 774 DUP
9 4110000076053 BEARING YD13 351 007 WTB35*64*38
10 4110000076190 PRESS BOARD 4642 308 185
11 4110000076324 PISTON 4644 353 051
12 4110000076324 PISTON 4644 353 051
13 4110000076352 SPECIAL SEALING RING 0750 112 141
14 4110000076199 LIMIT PLATE 4644 351 094
15 4110000076191 LIMIT PLATE 4642 308 555
16 4110000076353 SEALING RING 0750 112 140
17 4110000076251 PRESSURED SPRING 0732 041 183
18 4110000076189 GUIDE RING 4642 308 083
19 4110000076298 RETAINING RING 0630 531 346 AV55
20 4110000076302 GUIDE RING 4642 308 084
21 4110000076060 NEEDLE BEARING 0750 115 182 35*42*20
22 4110000076294 FLEXIBLE RETAINING RING 0730 513 610
23 4110000076062 NEEDLE BEARING 0635 303 204
24 4110000076295 FLEXIBLE RETAINING RING 0730 513 611
25 4110000076296 FLEXIBLE RETAINING RING 0769 124 115
26 4110000076247 THRUST WASHER 0730 150 779 DUP
27 4110000076290 GEAR YD13 353 011 (K3) Z=55
28 4110000076322 ROLLER SET 0750 119 048
29 4110000076329 CLUTCH ASSY.YD13 253 001
30 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
31 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
32 4110000076068 IN. FRICTIONAL DISC 4642 308 330 S=1,5
33 4110000076107 IN. FRICTIONAL DISC 4642 308 331 S=2.5
34 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5
35 4110000076067 EX. FRICTIONAL DISC 0501 309 329 S=2,0
36 4110000076069 IN. FRICTIONAL DISC 4642 308 332 S=2,0
37 4110000076107 IN. FRICTIONAL DISC 4642 308 331 S=2.5
38 4110000076074 IN. FRICTIONAL DISC 0769 129 011 S=1,5/2,0/2,5

BRAND LIST
